MaxxECU MINI: The Entry-Level Standalone ECU, Explained

Quick answer: The MaxxECU MINI is the smallest and most affordable standalone engine management system in the MaxxECU range. It runs up to 4 cylinders fully sequentially (or up to 8 cylinders in wasted spark), has a built-in 400 kPa MAP sensor good for 3 bar / 43.5 PSI of boost, and is tuned over USB with the same MTune software as every ECU MaxxECU makes. It has 4 injector outputs, 4 ignition outputs and 4 general-purpose outputs in a waterproofed aluminium case weighing 245 g. It does not have a built-in wideband lambda controller, drive-by-wire outputs, Bluetooth, knock inputs or EGT inputs — if you need any of those, start at MaxxECU STREET.

Rocket Speed Shop is the official MaxxECU distributor for the Baltics. This guide covers what the MINI actually does, which builds it fits, and exactly where its ceiling is.

Who the MaxxECU MINI is for

The MINI is the very basic, very compact MaxxECU. Four injector outputs and four ignition outputs make it a 4-cylinder ECU in our book, and its small sealed case lets it go where the bigger units cannot. It suits:

• Simple 4-cylinder engines — a classic, a carb-to-EFI conversion or an ITB build that needs proper sequential injection and coil control and not much else.

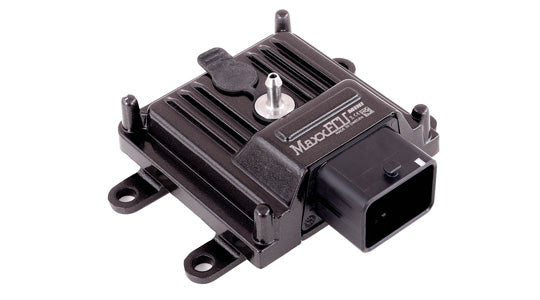

• Projects where size or weather protection decides. Motorcycles, karts, quads, buggies and small engine swaps. At 85 × 120 × 43 mm and 245 g in a waterproofed case, it fits where a STREET or RACE will not.
• ZF 8HP gearbox swaps — as a gearbox controller only. The MINI can be used purely for its transmission control capability, with the engine still running on another ECU. The gearbox control only needs a handful of signals: TPS, MAP, an RPM signal, the brake switch and the gear selector input. If some of those are available over CAN, the install becomes even simpler. For an 8HP swap this is a small, affordable and weatherproof way to get proper gearbox control.
• First-time standalone users who want to learn MTune. The tuning software is identical across the range, so nothing you learn on a MINI is wasted.

What the four general-purpose outputs do is up to you — boost control, VVT, a fan, a fuel pump. But note the two things the MINI does not have: a wideband lambda controller and knock control. Lambda is an elementary function on any engine, so budget for an external controller (see below). And on a turbo engine we would look at a unit with knock control first.

Key features

Built-in 400 kPa MAP sensor

The MAP sensor is inside the unit, plumbed with a supplied push-lock hose kit. That removes an external sensor, its wiring and a calibration step. It reads up to 3 bar / 43.5 PSI of boost.

Full sequential injection and ignition

Four injector outputs (high impedance only) and four ignition outputs delivering a 5 V signal to drive ignition modules, CDI units or smart coils. Ignition resolution is 0.1 degrees; injector resolution is 0.001 ms. Fuel and ignition calculations run 2000 times per second.

Motorsport control features that are not usually "entry level"

Three-stage launch control, rolling launch, anti-lag, shift-cut, traction control, power management, closed-loop and open-loop boost control with compensation tables, nitrous control, flex fuel, VANOS/VVTi support, closed-loop anti-stall and speed limiters are all included. This is the same feature software that runs on the flagship units.

Internal logging and CAN

8 MB of internal memory logs at up to 1000 Hz, with automatic start/stop triggered by conditions you define (speed, load, error code). PC logging over USB runs at 20 Hz. The CAN bus handles transmission control, expansion modules, OEM vehicle CAN and OBDII.

CAN gearbox control

Even the MINI can control a BMW DCT, VAG DSG or GEN1 ZF 8HP over CAN. Sequential gearbox control is supported too.

MaxxECU MINI full specifications

When to consider a bigger MaxxECU

Leave yourself some headroom. A MaxxECU is very capable of controlling far more than just the engine, so it is good practice to choose a unit that leaves a few inputs and outputs in reserve. Ideas develop as the project goes on, and very often the wish list grows — spare I/O means there is something left to use when it does. The ECU is not something you swap later like a sensor: the connectors and harnesses differ between models, so pick the right unit from the start.

The software is the same on every MaxxECU. What separates the models is only the number of inputs and outputs and what that hardware can do.

Consider STREET or SPORT instead of MINI if…

• You do not specifically need the MINI's small size or weather protection. An external wideband controller costs about as much as the price difference between MINI and STREET — and STREET has the wideband controller built in. For a normal car installation, STREET is simply the more sensible purchase.
• You want more inputs and outputs. STREET adds a second trigger input, two extra temperature inputs and more analog inputs; SPORT goes further with 6 spare analog inputs and 7 general-purpose outputs. With only four outputs on the MINI, boost control, VVT, a fan and a fuel pump already use all of them.
• The engine has 5 or 6 cylinders. STREET and SPORT have 6 injector and 6 ignition outputs.
• The engine has a drive-by-wire throttle or low-impedance injectors. SPORT has E-Throttle motor outputs and peak-and-hold injector drivers; MINI and STREET have neither.
• You want a wireless dashboard. SPORT has built-in Bluetooth for the MDash Android app.
• It is a turbo engine. Knock control starts at RACE — that is where we would start looking for a boosted build.

There is nothing below the MINI

The MINI is the entry point to the MaxxECU range. If it is over-specified for your project, the honest answer is that you probably do not need standalone engine management at all.

What to buy alongside a MaxxECU MINI

• MaxxECU WBO module (CAN lambda) — the MINI has no internal wideband controller, so it needs an external one. MaxxECU's own WBO module connects over CAN and comes with a Bosch LSU 4.2 sensor and connectors. A separate lambda gauge is not required — what the ECU needs is the controller.
• Pressure sensors — oil pressure and fuel pressure are the two we would fit to every engine. Both can be logged and used for engine protection.
• Temperature sensors — oil temperature, intake air temperature, gearbox or differential temperature, depending on how many inputs you have free.

Frequently asked questions

Does the MaxxECU MINI have a wideband lambda controller?

No. The MINI needs an external wideband controller — for example the MaxxECU WBO module, which connects over CAN. A separate lambda gauge is not necessary. STREET, SPORT, RACE, GEN2 and PRO all have the controller built in.

Can I use a MaxxECU MINI only to control a ZF 8HP gearbox?

Yes, and it is a very good fit for that job. Used purely as a transmission controller, the MINI needs TPS, MAP, an RPM signal, the brake switch and the gear selector input. If some of these are available over CAN, the installation is simpler still.

Can I use low-impedance injectors with a MINI?

Not directly. The MINI has high-impedance injector drivers only. Low-impedance injectors need resistor packs, or a step up to SPORT and above, which use peak-and-hold drivers.

Is MTune software free?

Yes. MTune is a free Windows download from MaxxECU and works with every ECU in the range, including the MINI. Firmware updates are free too. Because the software is shared, moving up the range later does not mean relearning anything.

Is the MaxxECU MINI waterproof?

The case is a waterproofed aluminium design and the micro USB port is sealed with a rubber cover, which is one of the main reasons to choose a MINI for an exposed installation. For more channels in a sealed package, look at RACE H2O or the IP68-rated GEN2 TRACK.

Where can I buy a MaxxECU MINI in Estonia, Latvia or Lithuania?

Rocket Speed Shop is the official MaxxECU distributor for the Baltic region. Buying through an authorised dealer means you get warranty coverage, firmware access and real technical support in the region.
