Turbo Flanges

Mitsubishi TD04 Adapter flange Adapter flange from RAKT Exhaust with labyrinth seal to tapered downpipe.This flange is used, for example, when mounting a Volvo V70 turbo with a straight exhaust housing on a Volvo 940 turbo, then you can mount this adapter in between...

Downpipe flange Holset HE221W #7 (5-bolt) Downpipe flange that fits the Holset HE221W with #7 turbine housing

Garrett 5-bolt outlet to 3" V-band FitsGarrett GT30Garret GTX30Garrett GT35Garrett GTX35 ATTENTION! Example image

Downpipe gasket Holset HE221W #7 (5-bolt) Downpipe gasket to fit Holset HE221W with #7 turbine housing

Downpipe flange to straight exhaust housingFits all volvos that have a straight exhaust housing and labyrinth seal It must be labyrinth seal (not cone) CC-Dimensions between the bolt holes: 81mmDimensions at the first recess: 70mmDimensions inside: 58.5 mm

Downpipe flange to straight exhaust housingFits all volvos that have a straight exhaust housing and labyrinth seal It must be labyrinth seal (not cone) CC-Dimensions between the bolt holes: 81mmDimensions at the first recess: 70mmDimensions inside: 58.5 mm

Downpipe flange Holset HE221W #7 (5-bolt) Downpipe flange that fits the Holset HE221W with #7 turbine housing

Fits only T4 exhaust housing

NOTE! Kit for self-welding. Adapter for Holset Super HX40 Internal WG 6-bolt flange with a cone to a 3" V-band, including a loose weld flange for the exhaust system. Designed to provide a 3" V-band connection to the exhaust system. Also very convenient if...

V-band flange turbine inlet Garrett G42 Outlet flange to weld on Downpipe to fit the exhaust system on the Garrett G42 range of turbochargers. This v-band flange fits the exhaust outlet on the following turbochargers:Garret G42-1200Garrett G42-1200 CompactGarrett G42-1450 Dimensions this flange clamps on:...

V-band flange Garrett turbine housing stainless steel V-band (downpipe flange) fits Garret GT and GTX series with V-band turbine housing. V-band flange suitable Garret turbine housing.

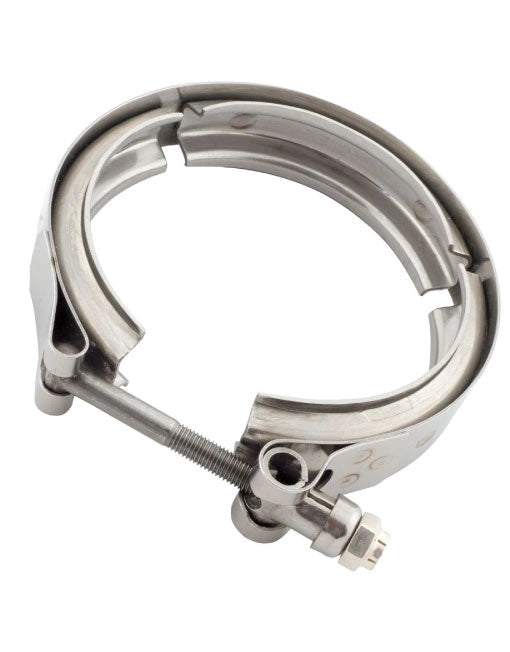

V-band clamp Downpipe Garrett GT/GTX 28 V-band (downpipe flange) fits Garret GT and GTX series with V-band turbine housing. V-band clamp suitable Garret turbine housing.

V-band flange Garrett turbine housing stainless steel V-band (downpipe flange) fits Garret GT and GTX series with V-band turbine housing. V-band clamp suitable Garret turbine housing.

Holset HX40WG / HX50 downpipe gasket Gasket in stainless steel Fit:Holset Super HX40 with internal wastegateHolset HX50 MFS with 6 bolt downpipe outlet 89mm hole.120mm PCD

Downpipe flange Super HX40WG / HX50 Fits the following turbochargers:Holset Super HX40 with turbine housing #14 and #16Holset HX50 ID: 88mmBolt hole cc: 60mmBolt hole CC (across):120mm

Garrett 5-bult turbine outlet to 3" V-band adapter The GT25R / GT28R / GT30R 5 bolt to 3" adapter, (see the associated V-band kit products) fits all GT25R / GT28R / GT30R turbine housings with 5-bolt outlet(not those specific to Skyline)

Downpipe flange in steel. Fits Holset HX50 MFS turbine housing. 89mm hole.120mm PCDThickness: 10mm

Downpipe flange mild steel for Holset HX35 Fits Holset Super HX35 Hole diameter: 64mmBolt hole CC: 63mm

Down pipe flange in steel. Fits Holset Super HX40 with turbine housing size #18. CC bolt hole: 71mm

V-band Garrett turbine housing stainless steel V-band (downpipe flange) fits Garret GT and GTX series with V-band turbine housing. V-band flange and clamp suitable Garret turbine housing.

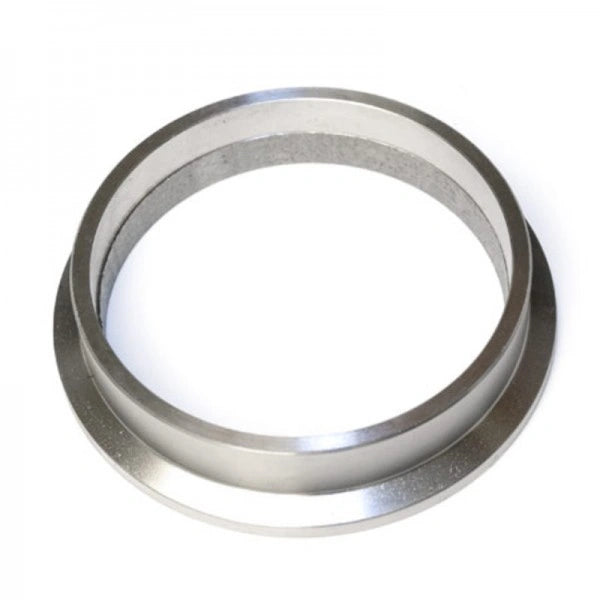

Garrett V-band 3" G25/30/35 GT/GTX30/35 3" v-band clamp to fit Garrett turbine housing outlet / downpipe flange. Fits the following turbine housing from Garrett: Garrett G25Garrett G30Garrett G35Garrett GTX30Garrett GTX35Garrett GT3071RGarrett GT3076RGarrett GT3582R

Downpipe flange Garret 5 bolt Stainless exhaust flange (downpipeflange) fits Garret 5 bolt turbine housing with internal wastegate. Downpipe flange in 10mm stainless steel fits Garret turbo with 5 bolt turbine housing.

NOTE! Self weld kit V-band adapter kit for Holset Super HX40 with #18 turbine housing. 4-bolt flange with exhaust cone to 3,5" V-band flange (includes V-band welding flange to weld on the exhaust system) Holset V-band adapter kit to get 3,5" exhaust V-band out...

NOTE! Self weld kit V-band adapter kit for Holset Super HX35 with # 8 turbine housing. 4-bolt flange with exhaust cone to 3" V-band flange (includes V-band welding flange to weld on the exhaust system) Holset V-band adapter kit to get 3" exhaust V-band...

NOTE! Self weld kit V-band adapter kit for Holset Super HX40 with #18 turbine housing. 4-bolt flange with exhaust cone to 3" V-band flange (includes V-band welding flange to weld on the exhaust system) Holset V-band adapter kit to get 3" exhaust V-band out...

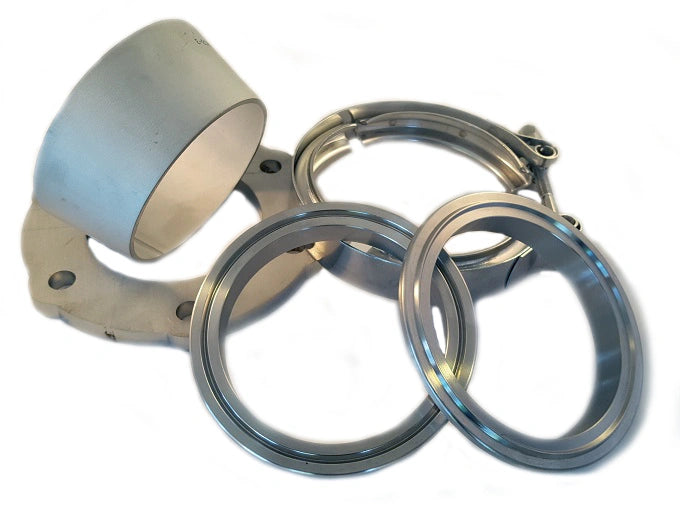

NOTE! Self weld kit V-band adapter kit for Holset Super HX40 with #14 or 16 turbine housing. 6-bolt flange with exhaust cone to 3,5" V-band flange (includes V-band welding flange to weld on the exhaust system) Holset V-band adapter kit to get 3,5" exhaust...

T28 Gasket Garrett 5 bolt Exhaust gasket for Garrett 5 bolted downpipeflange. Also called T28 gasket. Examples of turbochargers from the Garrett GT series this WG fit: GT3071, GT3076, GT3576, GT3582 Examples of turbochargers from the Garrett GTX series this WG fit: GTX3071, GTX3076,...

Stainless steel turbo gasket

Stainless steel turbo gasket
