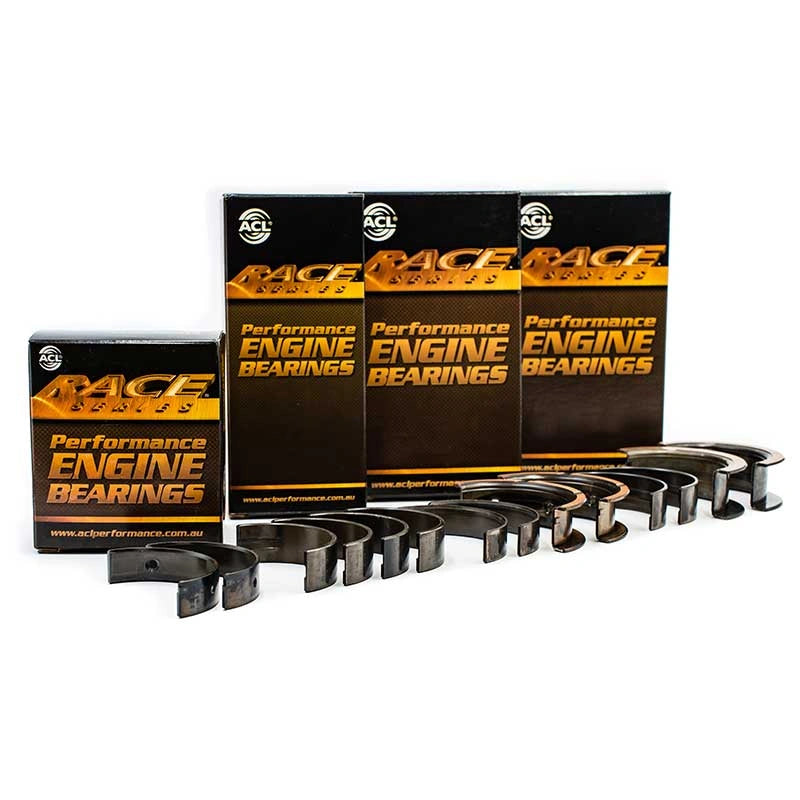

ACL Race raamsaaled Ford Barra / Barra Turbo / EF-EL (STD)

ACL bearings are used for tuning and engine upgrades where you want better quality with higher bearing capacity than normal standard bearings.

Improvements of material, dynamic thickness, heat conduction, oil grooves and oil distribution are some of the points that make ACL one of the leading bearing manufacturers.

Bearing data

Part number: 7M2092H
Bearing size: STD
Bearing half type: Lower
Bearing material: F780

Technical data (mm)

Max overall length: 20.9
Max shaft size: 67.505
Max tunnel size: 71.541
Max vertical oil clearance: 0.087
Max wall at crown: 1.999
Min shaft size: 67.481
Min tunnel size: 71.517
Min vertical oil clearance: 0.031

Technical data (in)

Max overall length: 0.8228
Max shaft size: 2.6577
Max tunnel size: 2.8166
Max vertical oil clearance: 0.00342519
Max wall at crown: 0.0787
Min shaft size: 2.6567
Min tunnel size: 2.8156
Min vertical oil clearance: 0.00122047

Engine code

4.0L AU-AU III / Barra / Barra Turbo / EF-EL

Application

Ford 4.0L (243ci) AU-AUIII Intech (Australia) Inline6 SOHC 2v
Ford 4.0L (243ci) Barra (Australia) Inline6 DOHC 4v
Ford 4.0L (243ci) Barra (Australia) Inline6 DOHC 4v Turbo
Ford 4.0L (243ci) EF-EL (Australia) Inline6 SOHC 2v
