Piduri peasilinder 0,625" uniballiga

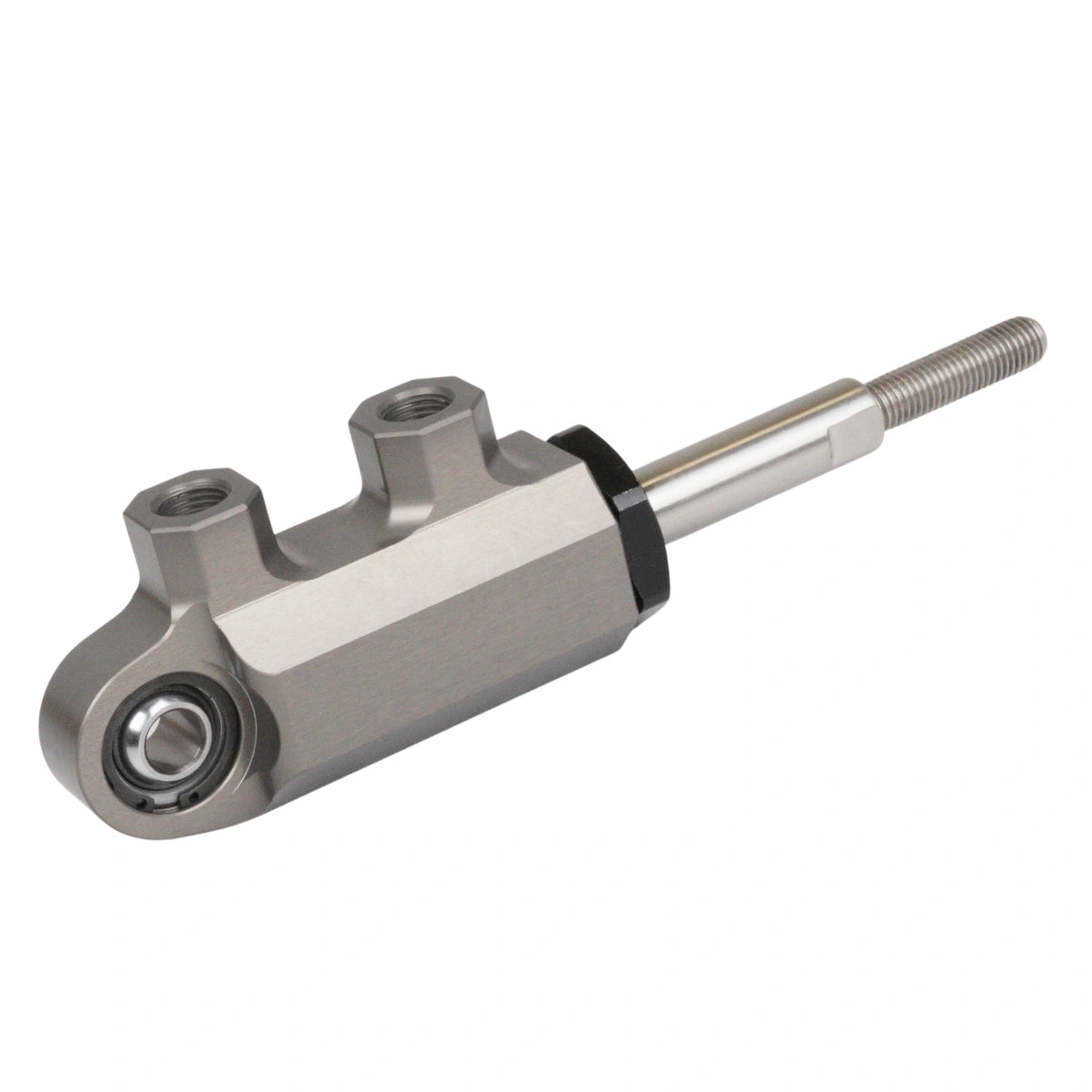

Master Brake Cylinder 0.625" with Rod End Bearing

For hydraulic handbrake and pedal box.

Master brake cylinder made of CNC-machined aluminum with a compact design – strong and lightweight.
The hard-anodized surface provides a durable finish and high reliability.

The mounting is equipped with a rod end bearing that follows pedal movement and balance bar offset, reducing side loads and providing smoother brake response and longer service life. Suitable for both hydraulic handbrakes and pedal boxes.

Specifications:

• Push rod thread: 5/16" UNF
• Inlet: M10x1 (non-flared)
• Outlet: M10x1 (flared)
• Rod end bearing: 8 mm I/D
• Max stroke: 20 mm
• Weight: 120 g
• Color: Grey
• Dimensions:
  Width: 26 mm
  Height: 39 mm
  Total length: 148 mm
  Length (to rod end center): 135 mm
