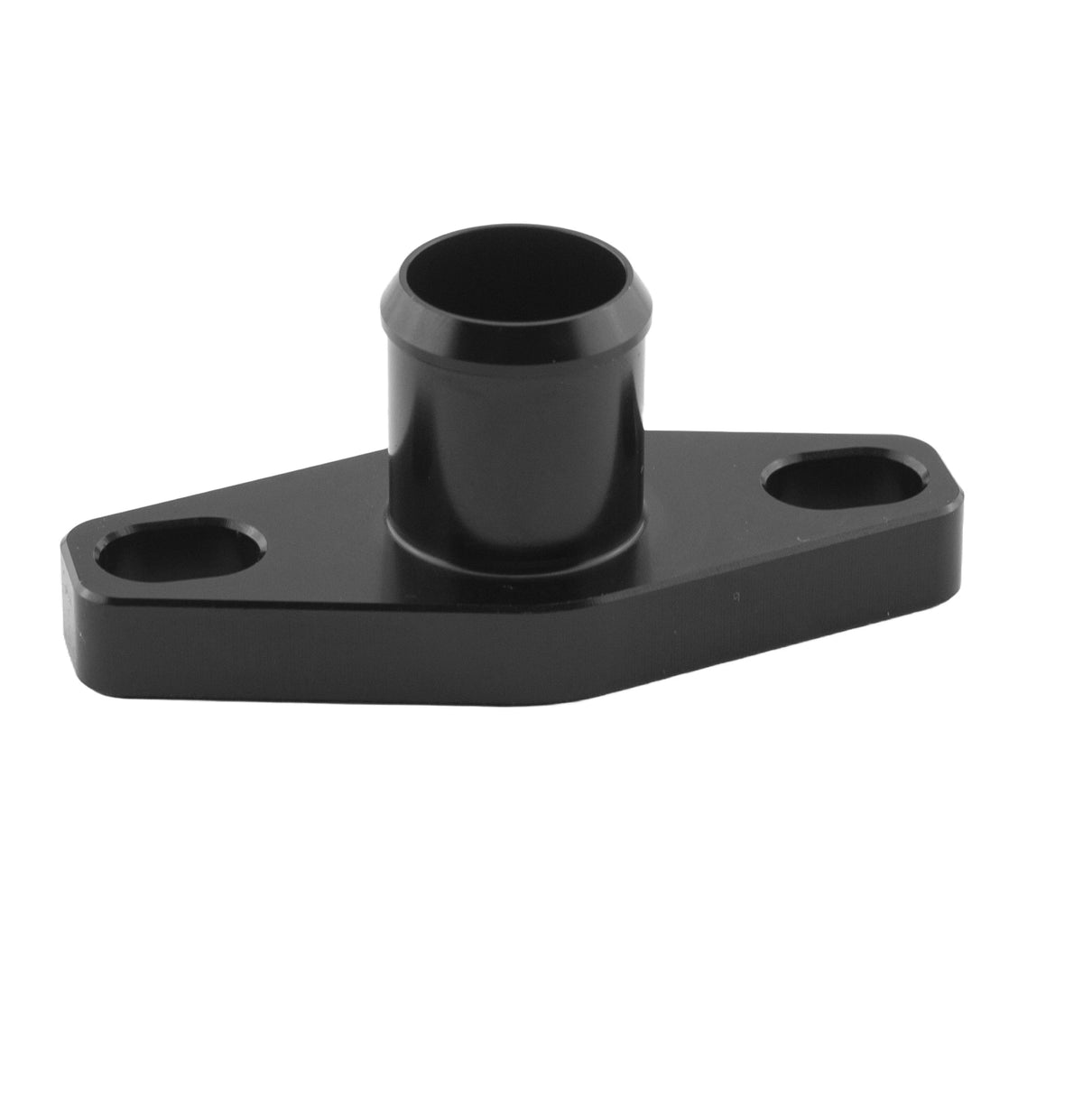

Õli tagasivoolu flants kuusega CC 51mm

Oil drain flange with barb

Dimensioning of this oil return with 16mm internal dimensions is specifically manufactured to be approved as an oil return for a turbo that does not have ball bearings such as e.g. Holset HX30/ HX35 / HX40 or Borg Warner SX-E etc.

Specifications:
External dimension of the hose connection: 19mm
CC measurement bolt hole: 51mm (Hole width 12mm for easier installation)
Inner diameter return connection: 16mm
Internal cone of the return for increased flow
